Vacuum Stand#
Overview#

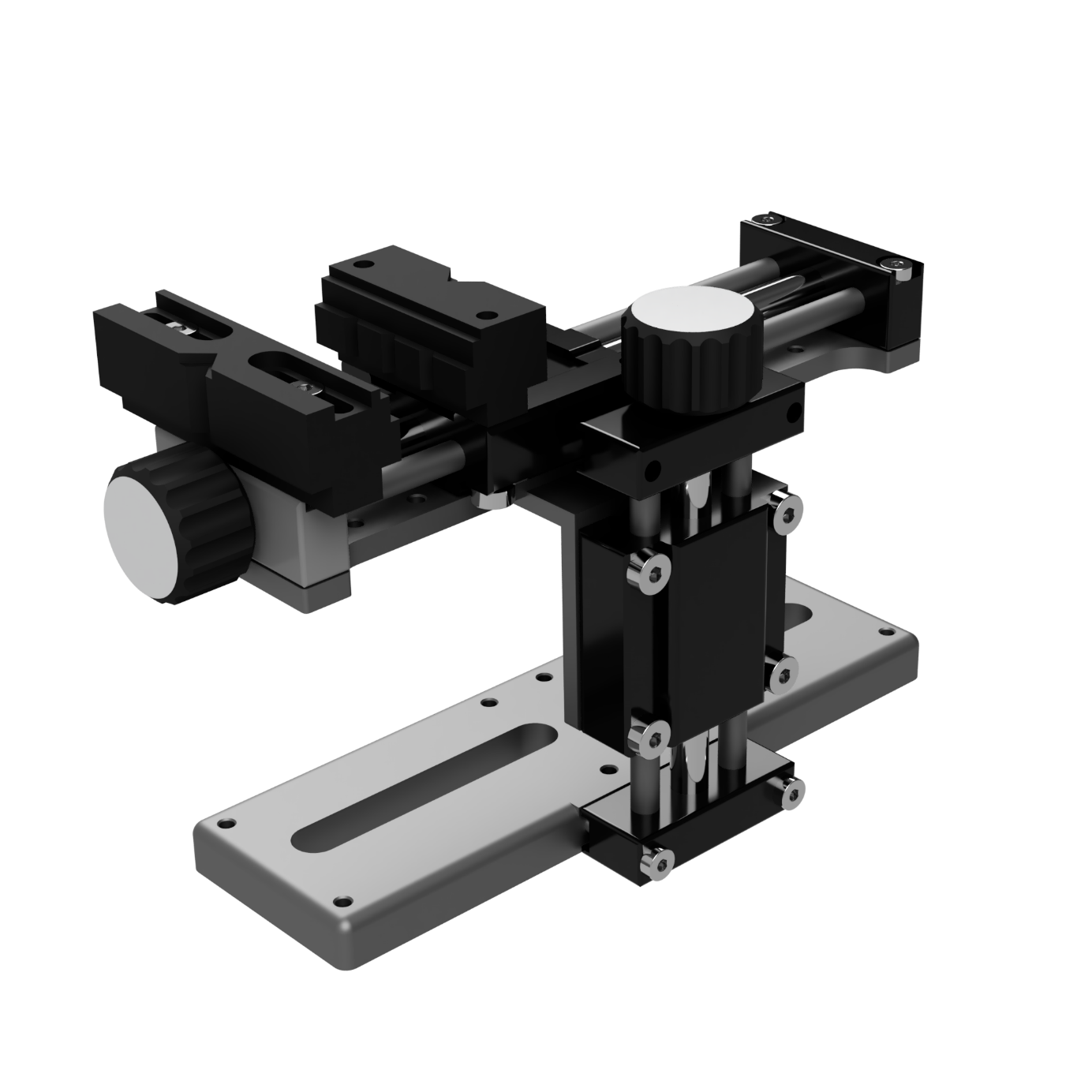

The “Vacuum Stand” is dedicated for horizontal placement of the DUT in the Vacuum Chamber or for other horizontal measurements such as on the Scanning Vibrometer.
The “Vacuum Stand” is a subset of the Micro Speaker Clamping which could be modified to the “Vacuum Stand”. A separate add-on set for modifying a “Vacuum Stand” into a “Micro Speaker Clamping” is not available.
List of screws#

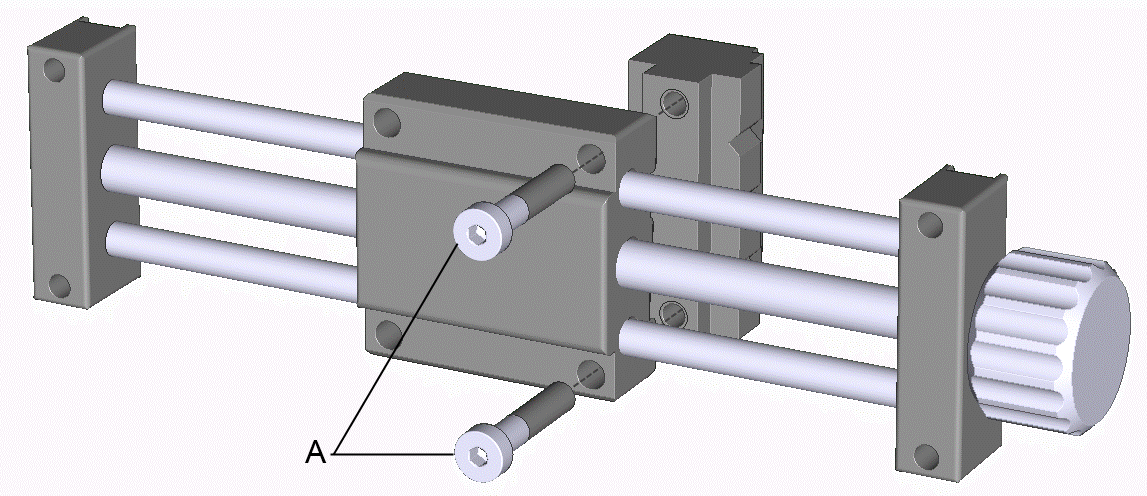

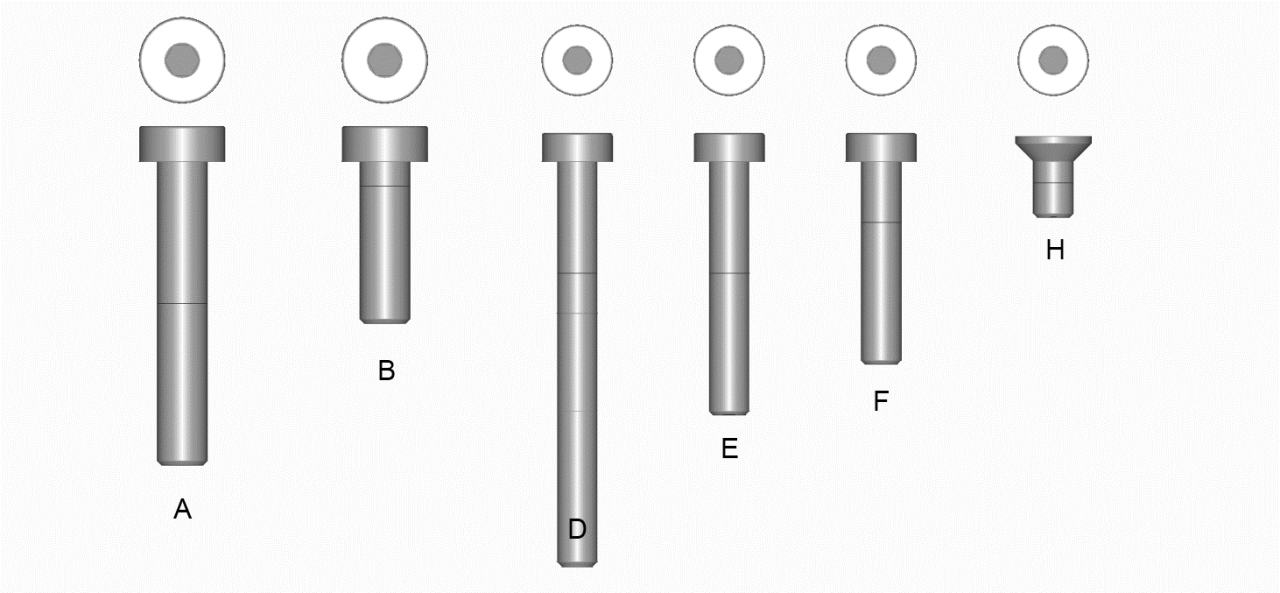

A: M5x30 Allen screw 2 pc.

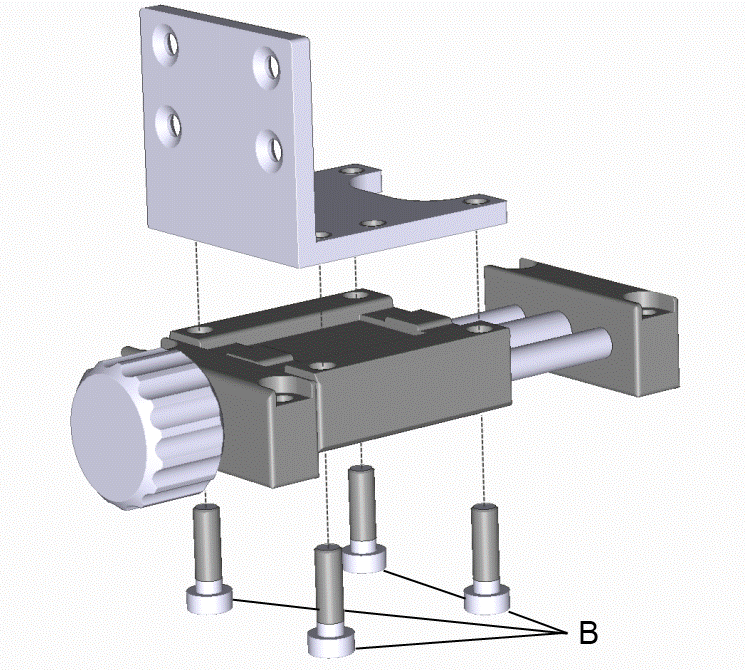

B: M5x18 Allen screw 4 pc.

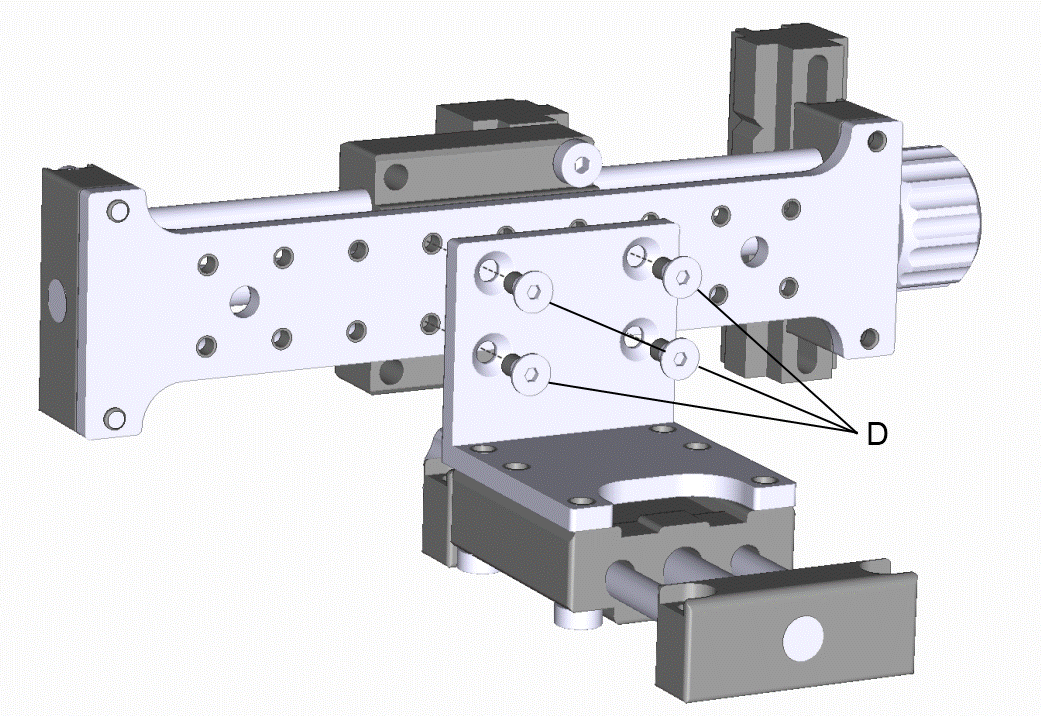

D: M4x40 Allen Screw 2 pc.

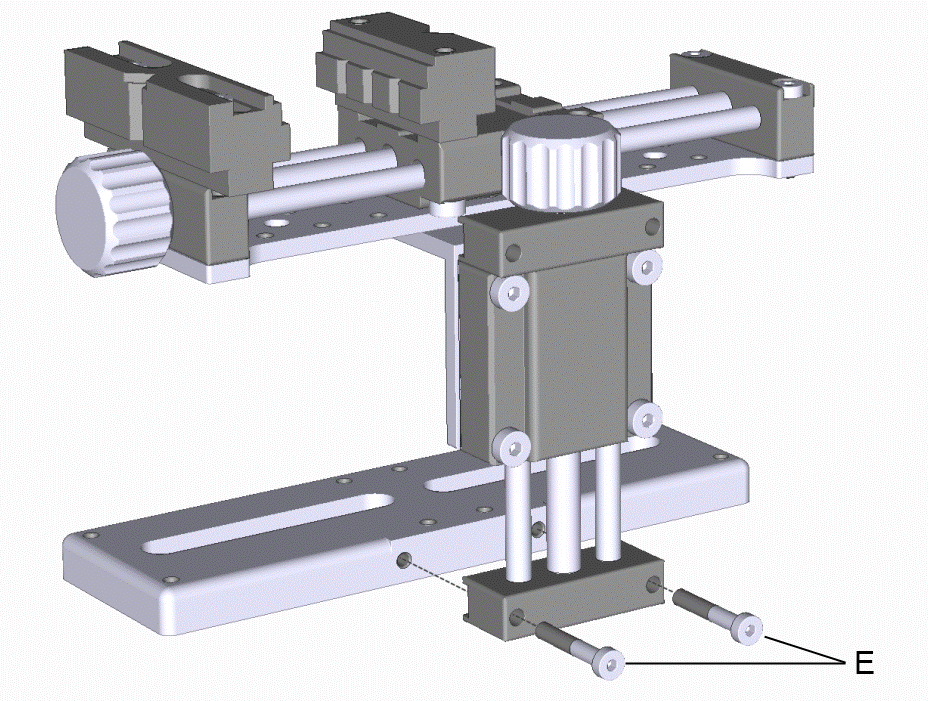

E: M4x25 Allen Screw 2 pc.
F: M4x20 Allen Screw 2 pc.
H: M4x8 Allen counter sunk screw 4 pc.
K: M10x20 hand screw 1 pc. (not shown)
Mounting instructions#
Follow the instructions step by step to mount the Vacuum Stand.
Mounting positions#
Height adjustment#

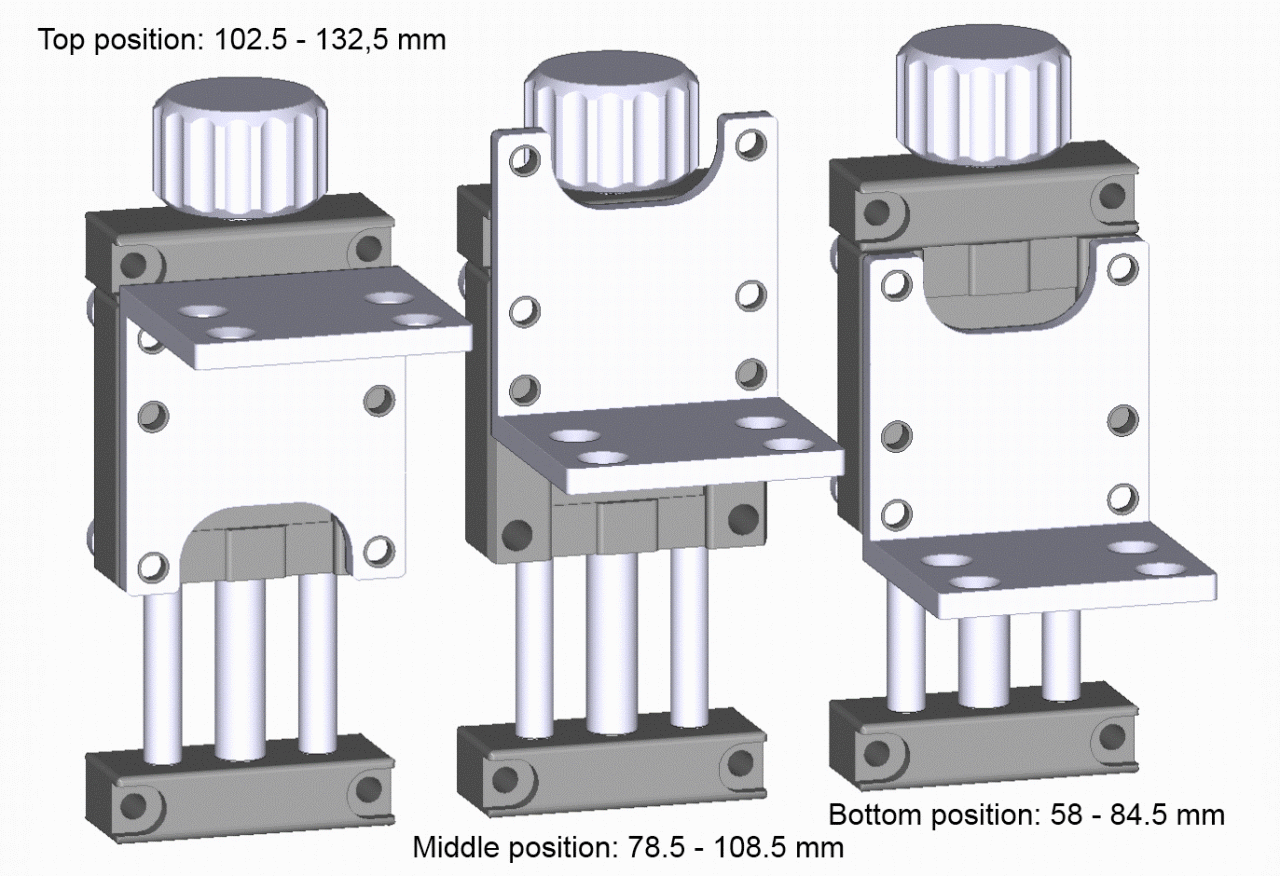

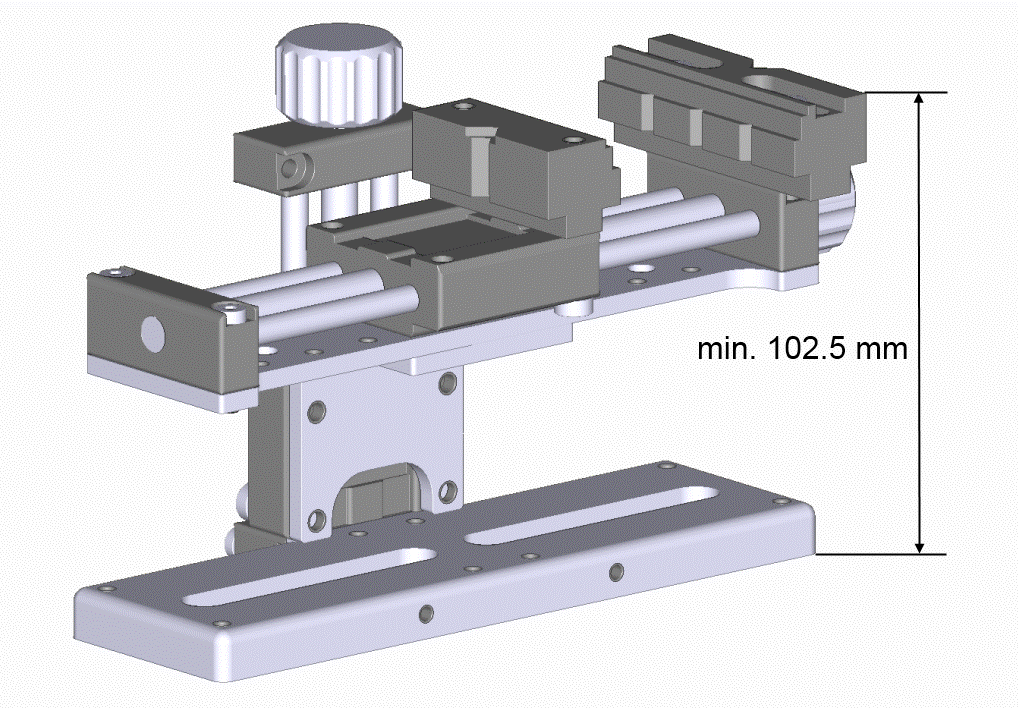

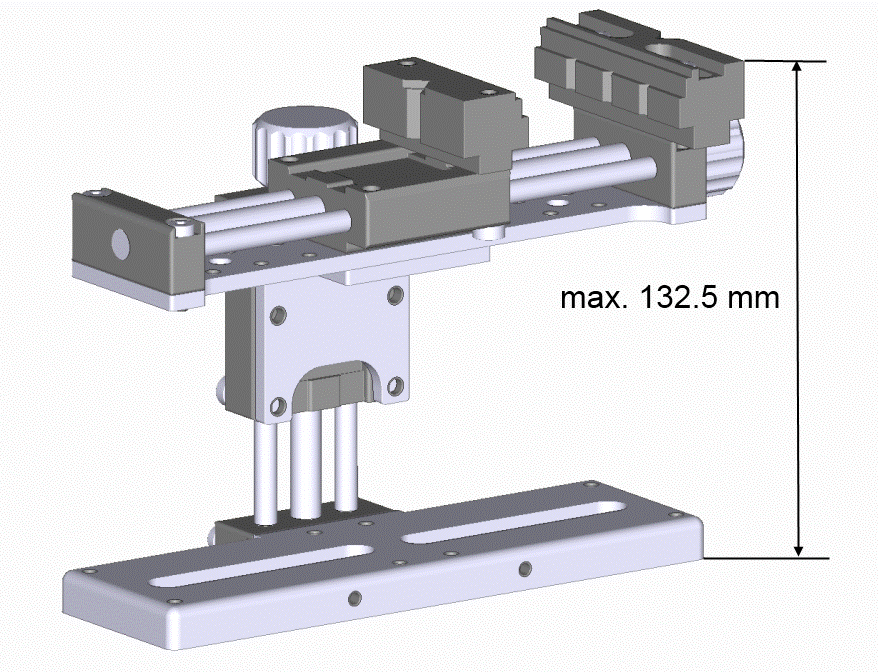

Height adjustment range in top position
Turn brackets#

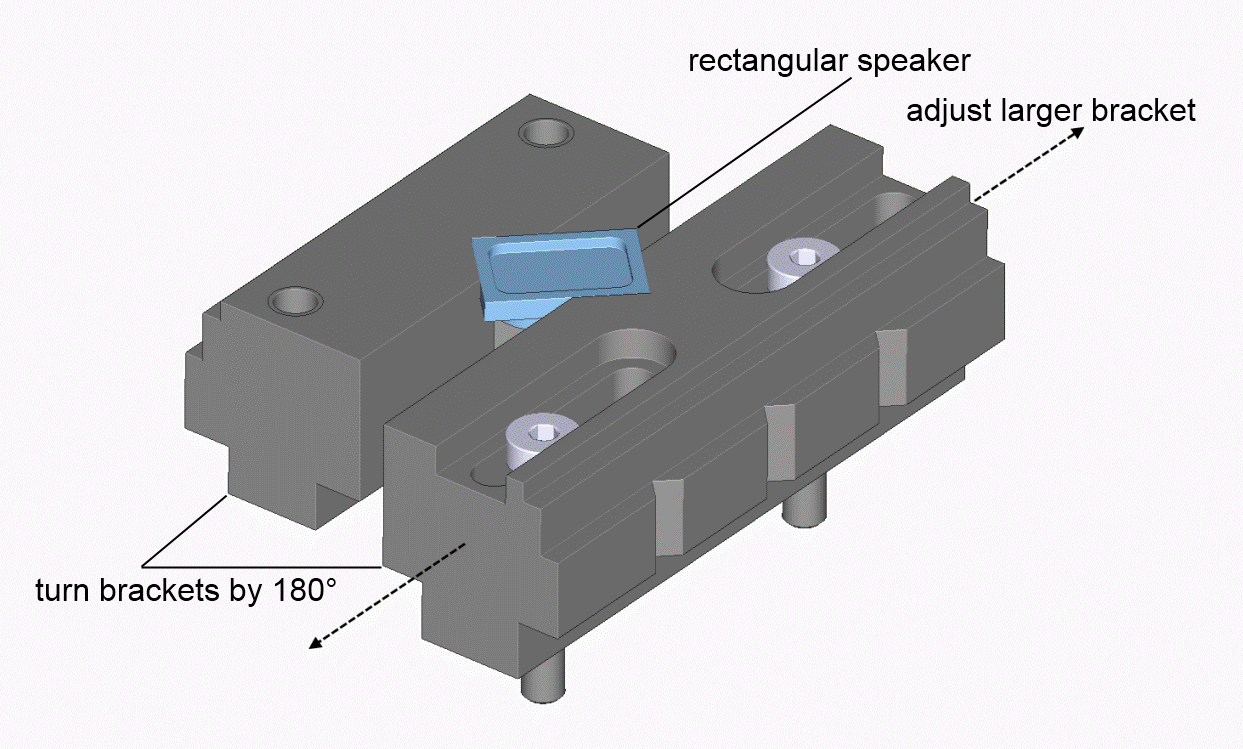

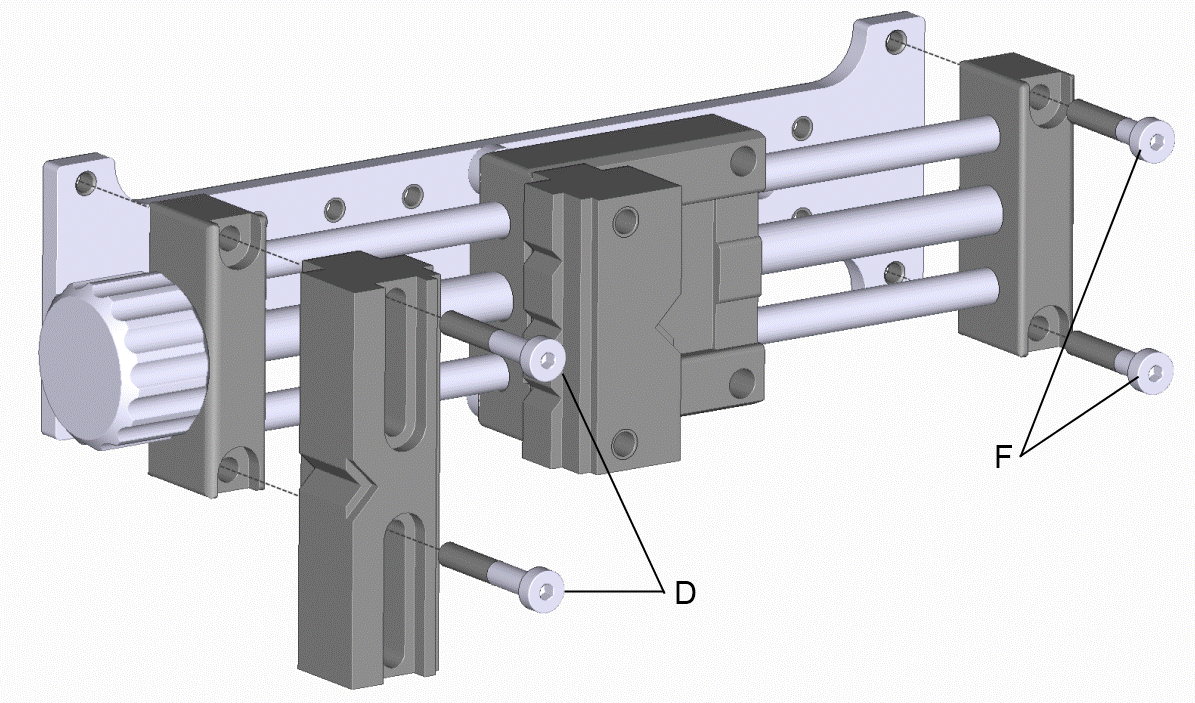

You can turn the brackets by 180° and adjust the larger bracket to mount a rectangular speaker!
Bracket displacement#

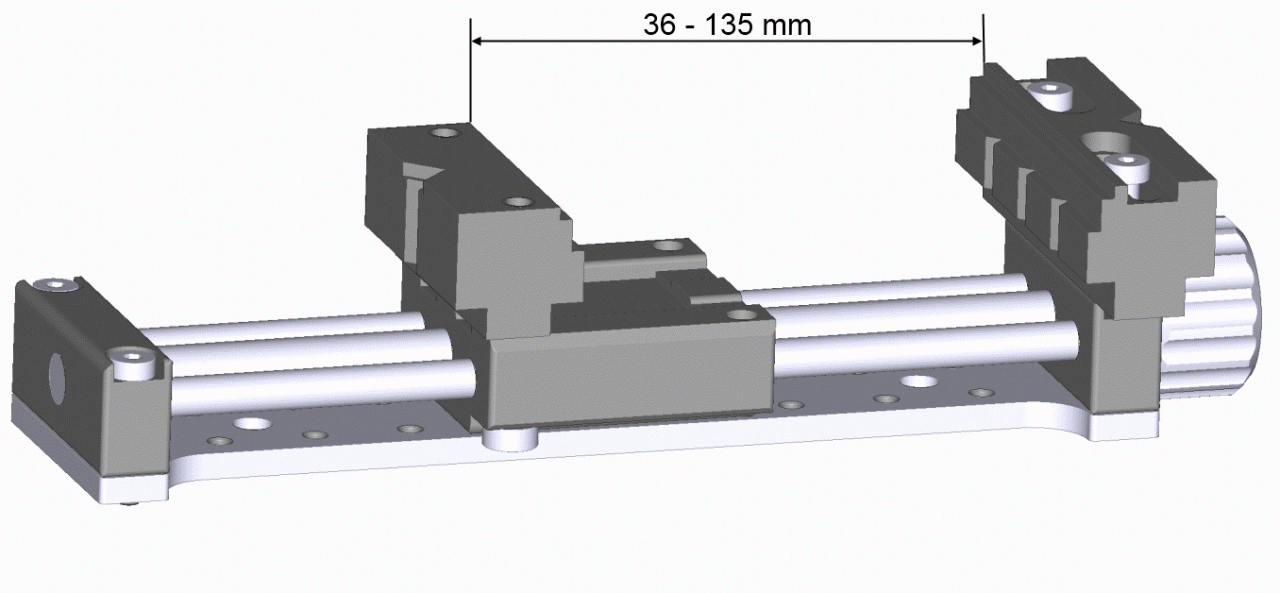

You can displace the small bracket to enlarge the clamping area!
Mount on SCN turntable#

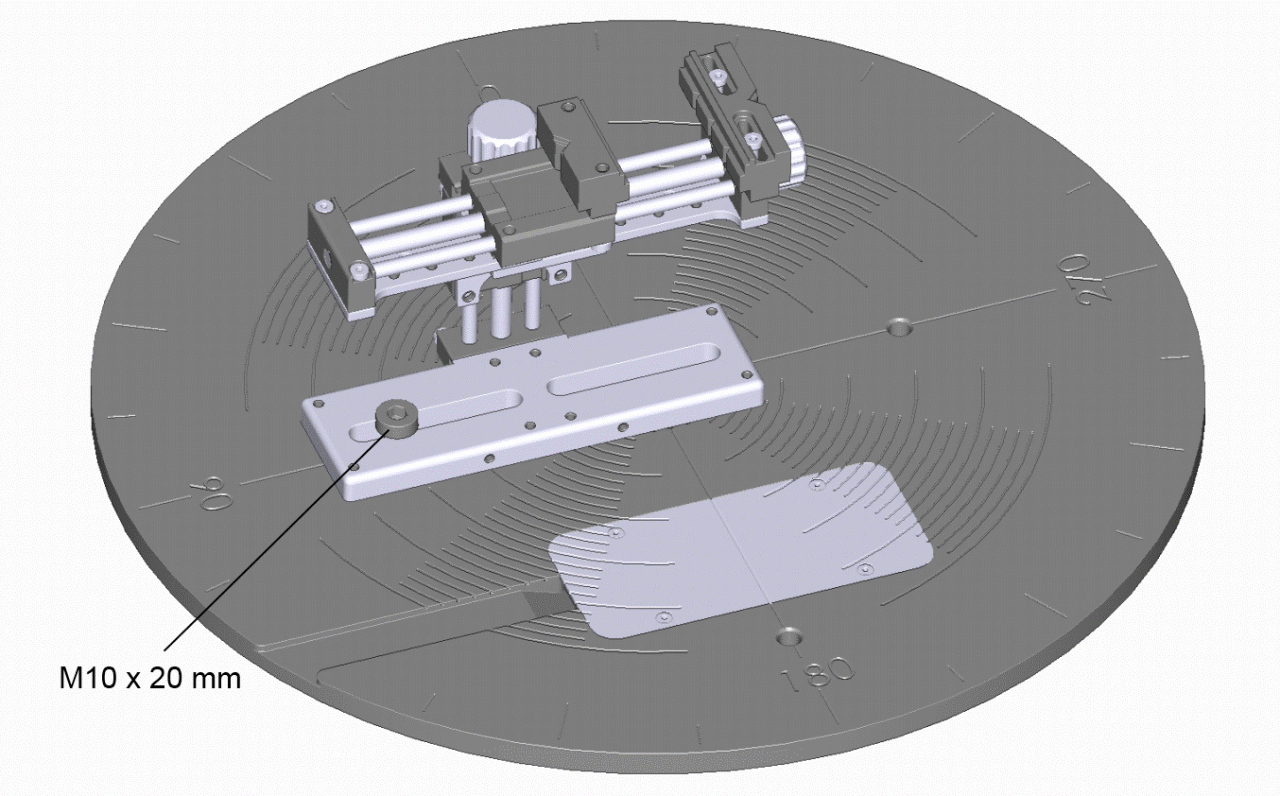

You can mount the Vacuum Stand on the turntable from the Klippel Scanning Vibrometer!
A M10 x 20 mm hand screw will be included with the Vacuum Stand SN >= 150 or Micro Speaker Clamping SN >= 140. Any other screw of this size can also be used.
The SCN – Scanning Vibrometer shipping lock screw together with ist shipping lock spacer can be used alternatively.

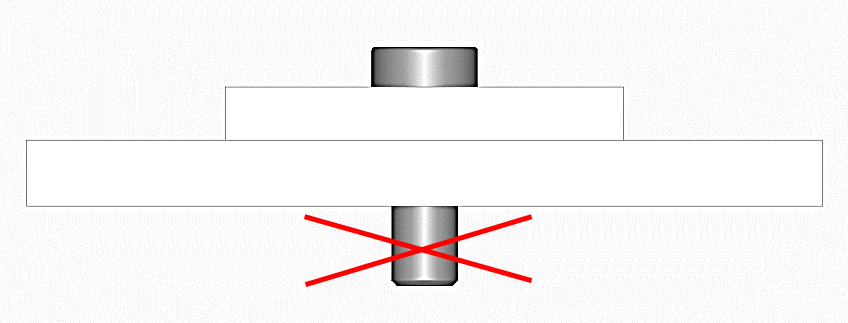

Attention! Screw must not reach below the turn table!
Additional Instructions#
Bracket Exchange Instruction#
The used brackets are identical at the Vacuum Stand and Micro Speaker Clamping. The Bracket Exchange Instruction thus is included in the Micro Speaker Clamping manual.
Maintenance Instructions#
The Maintenance Instructions are identical for the Vacuum Stand and Micro Speaker Clamping.
